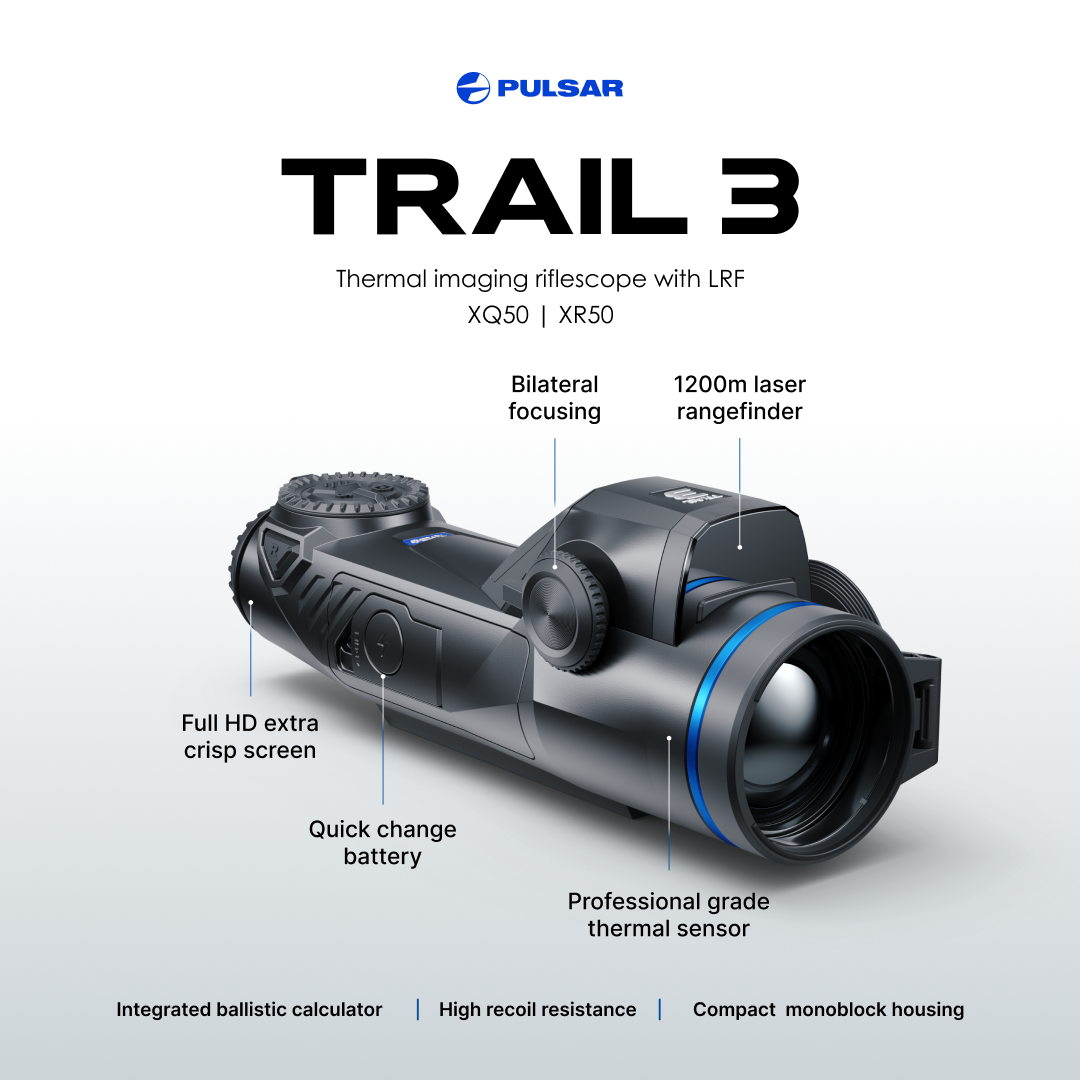

Precision Range finding at Extended Distances

Each Trail 3 model features a built-in high-precision laser rangefinder capable of measuring

distances to targets up to 1,312 yards (1,200 meters), enabling hunters to make accurate shots at

extended ranges. This integrated range finding system eliminates the need for separate

range finding devices and streamlines the shooting process.

Two Models to Match Your Hunting Style

Trail 3 LRF XQ50

● 384×288 px microbolometer with 17µm pixel pitch

● F50/1.0 lens with 3.5-14x magnification

● Detection range: 1,800 m / 1,969 yards (deer-sized target)

● 7.5° / 13.1° angle of view at 100m

● System NETD: <15 mK for exceptional image clarity

Trail 3 LRF XR50

● 640×480 px microbolometer with 12µm pixel pitch for superior resolution

● F50/1.0 lens with 3-24x magnification

● Extended detection range: 2,300 m / 2,516 yards (deer-sized target)

● 8.8° / 15.4° angle of view at 100m

● System NETD: <18 mK

Advanced Features for Modern Hunters

Both Trail 3 models share a robust feature set designed for reliability and ease of use:

● AMOLED Display: High-resolution 1920×1080 pixel AMOLED screen delivers crisp, clear

thermal imagery with excellent contrast

● Versatile Reticle Options: Multiple click values across the magnification range, including

settings from 9.1 mm at 3.5x down to 1.3 mm at 24x for precise hours of continuous operation at 22°C

● USB Type-C Power Delivery: External power support via 5V, 9V USB Type-C for

extended missions

● Built for Recoil: Engineered to withstand up to 6,000 Joules of impact resistance, suitable

for heavy-caliber rifles

● Rugged Weatherproofing: IP67 rating ensures complete protection against dust and

water immersion

● Extreme Temperature Performance: Operational range from -25°C to +50°C (-13°F to122°F)

● Compact Dimensions: 271×86×71 mm (10.7" × 3.4" × 2.8") with eyecup
