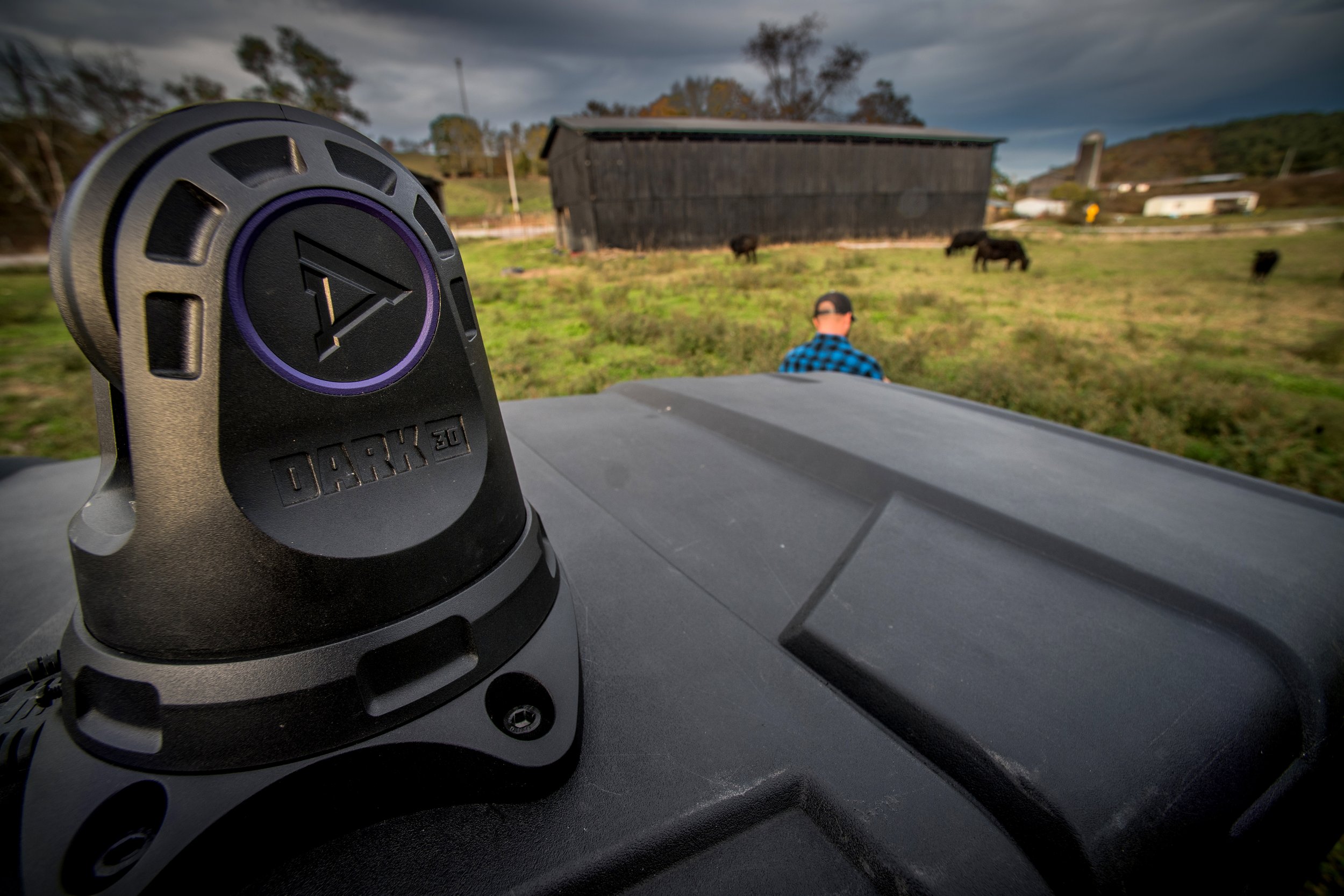

The Dark 30 Defiance LS 384 PTZ is a heavy duty thermal imaging unit purpose-built for
vehicle mounting. Whether you’re patrolling fence lines, tracking predators, or rolling deep
into ranch country after dark, this system gives you the eyes you need when it matters
most.
Outfitted with a 384x288 thermal sensor and precision-engineered PTZ control, the
Defiance LS sees heat through brush, fog, and pitch darkness—while you stay behind the
wheel. With app-based control, onboard recording, and ruggedized construction, this
rugged vehicle-mounted camera is a turn-key thermal solution for trucks, UTVs, and offroad platforms.
*Features
• Variable Speed Remote Control
• Sleep Mode
• Return To Home Function
• 384x288 Thermal Imaging Sensor
• Infinite 360° Panning
• Low Latency HDMI compatible Wired Screen
• App Control on the Dark 30 App
• Versatile Mounting Options:
Permanent bolts, suction cups, or 100lb pull magnets
• Water Resistant

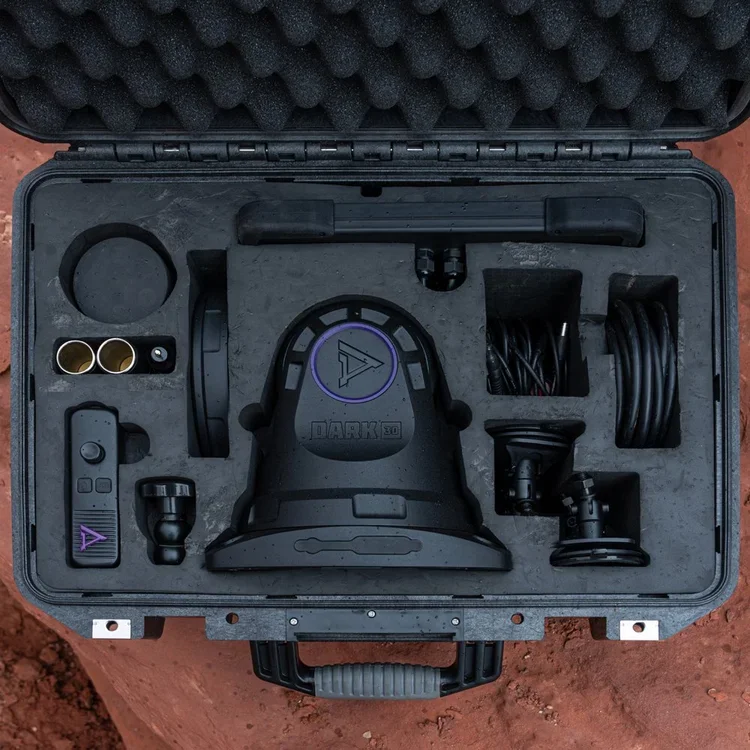

*Accessories
• Base Kit
• Remote
• 10.1" Screen
*GENERAL
Water Resistance IP66
Pan angle Continuous 360° Tilt angle
Straight downward to 45 degrees above horizontal
Body Material Aluminum
Width 6.65”
Depth 7.68“Height 7.8”
Weight 111 oz
Operating Temperature Range °F -4°F x 122°F
Ports 1 TF card slot, 2 HDMI ports, 2 DC ports
Display type LCD
Screen Size 10.1”
*POWER
Power Supply 12VDC
Camera Amperage @12V DC 750mA
Display Amperage @ 12VDC 320mA
Adaptor Connection with both Camera and Display
1200mA
*SENSOR
Device Technology Thermal Imaging
Sensor resolution, pixels 384x288
Frame rate 60 fps
Pixel size 17 micron
Spectral range 8 - 14μm
Detector NETD <40 mK

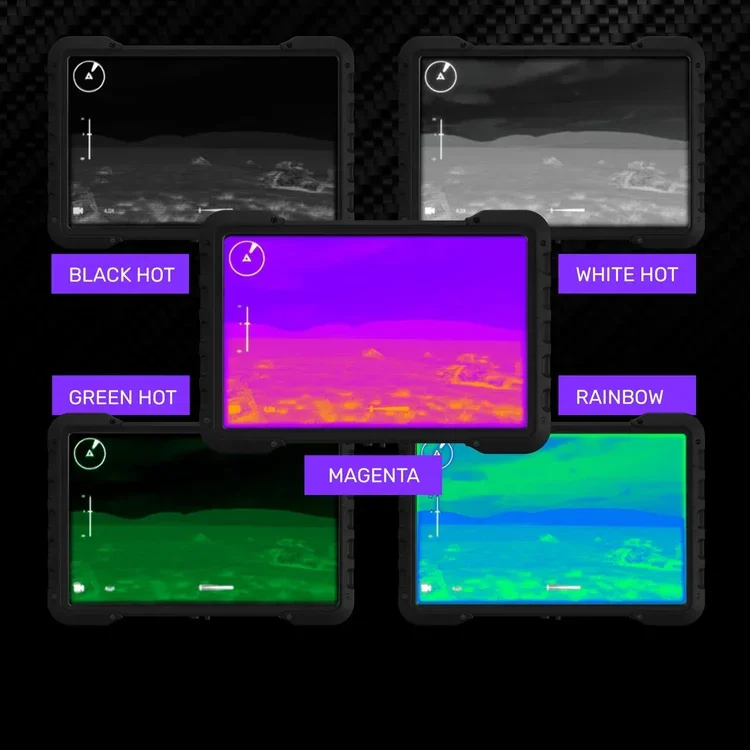

Color palettes 5
Detection range yd 1250 yds
*OPTICS
Lens material Germanium
F/# NUMBER (lens) 1
Lens diameter 30 mm
Focal length 30 mm
Digital zoom 1-8x
Magnification n/a
Field of View Horizontal 20°
Field of View Vertical 15°
Field of View Diagonal 25°
